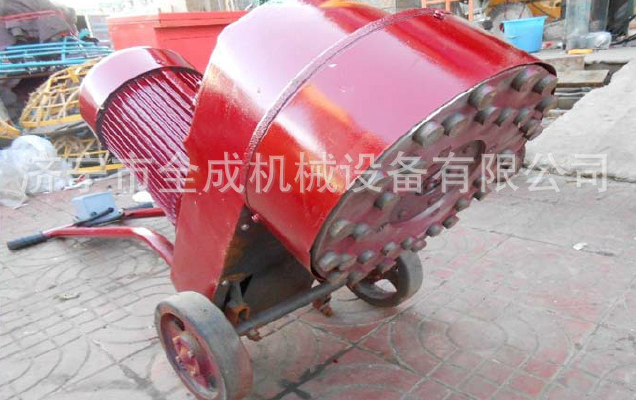

Terrazzo machine water mill stone terrazzo equipment 250 single terrazzo machine terrazzo grinder grinding diamond terrazzo machine home terrazzo machine
Terrazzo machine - Introduction
Automatic terrazzo machine terrazzo floor tile is widely used in ground facilities in urban and rural areas, because of its low-cost color and shape can be optionally designed, good integrity, beautiful appearance, no radiation, wear-resistant, non slip, anti aging, life and natural stone quite. In the pursuit of people to recover the original simplicity as the surface decoration, terrazzo machine new.
Terrazzo machine features
1 suitable for terrazzo, marble tile polished brick size control in the range of 300-600MM.
2 equipment using the station, multiple sets of grinding head, automatic conversion station, automatic grinding, feeding, grouping progressive grinding, can complete the rough, medium, fine and polishing all the work.
3 operation is simple and convenient, only one person to operate, to ensure that the floor tile loading and unloading, stable performance, safe and reliable.
4 smooth surface can be comparable with marble.
5 high degree of automation, labor, electricity, labor intensity, location, cost saving is obvious.
6. One achieve the quality requirements, the production efficiency is high, help Moshi brick industry to achieve two key production capacity and economic leap.
Terrazzo machine technical parameters
Model
QC-250 type
QC-250 type
QC-350 type
Grinding disc diameter
250mm
250mm
350mm
Disc rotation speed
1400r/min
2800r/min
2800r/min
Rough grinding efficiency
(7-11) /h square meters
(7-11) /h square meters
(20-30) /h square meters
Life
(700-1200) m / disk
(700-1200) m / disk
(2000-3500) m / disk
Motor power
3.0KW
3.0KW
7.5KW
supply voltage
220V
380V
380V
Diamond grinding blocks
16 block
16 block
32 block
Terrazzo machine - terrazzo machine safety operation rules
(1) the operating personnel must wear rubber boots, wear insulated gloves.
(2) superior in terrazzo concrete reaches the design strength of 70% ~ 80% grinding operation.
(3) before the operation, should check and confirm the connection fastener, when with a mallet tap stone a crack free crisp sound operation, can be.
(4) electrical wiring, you must use the weather resistant type insulating core cord, switch should be using the button switch, and is installed on the handle of the grinding machine. From the cable should be erected, shall not be placed on the ground drag. The cable should be no damage, good grounding protection.
(5) terrazzo machine handle must be insulating sleeve, line adopts the earthing protection, contact shall not be less than two and shall be installed leakage protector (leakage action current should not be greater than 15mA, action time should less than 0.1s).
(6) the power supply is switched on, the water pressure, should handle the disc out of the ground, and then start the motor. And should check the confirmed disc rotation direction of the arrow shown in the same direction, to be in normal operation, and then slow down to disc and operations.
(7) during the operation, the use of the cooling water shall not be interrupted, water consumption should be adjusted to the working face is not dry.
(8) during the operation, when the discovery of wobble or noise, should immediately stop maintenance. Shutdown, should first enhance the disc after shutdown.
(9) is replaced with a new stone should be first in wastewater terrazzo floors or waste cement product surface grinding 1 ~ 2H, to be a diamond cutting edge grinding, and then put into working faces.
(10) grinding block must be clamped, and should always check the fixture, lest stone flying away.
(11) after the operation, the power should be cut off, cleaning the various parts of the mud, placed in a dry place, covered with a tarpaulin.
(12) electrical wiring, switches, etc., must be installed and maintenance of electrical equipment, other personnel are not allowed to arbitrarily.
- Place of Origin: jining
- Brand Name: All machinery
- Model Number: QC-250
Model | QC-250 | QC-250 | QC-350 |
Grinding disc diameter | 250mm | 250mm | 350mm |
Disc rotation speed | 1400r/min | 2800r/min | 2800r/min |
Rough grinding efficiency | (7-11)㎡/h | (7-11)㎡/h | (20-30)㎡/h |
Life | (700-1200)㎡/disc | (700-1200)㎡/disc | (2000-3500)㎡/disc |
Motor power | 3.0KW | 3.0KW | 7.5KW |
supply voltage | 220V | 380V | 380V |
Diamond grinding blocks | 16 | 16 | 32 |
