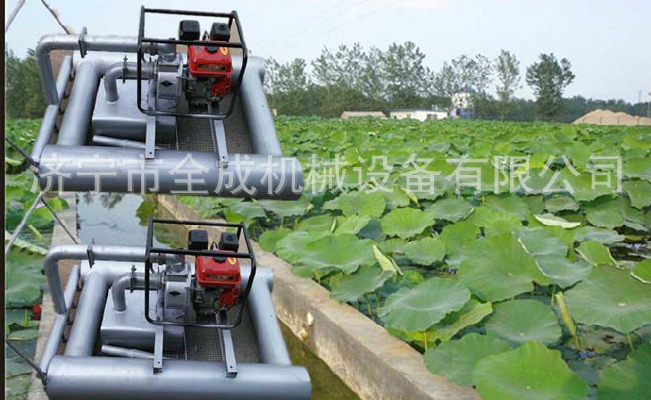

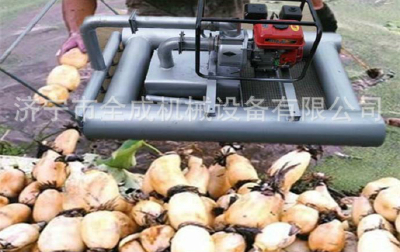

= = the characteristics of lotus root digging machine:

1 stainless steel full closed structure, durable, including 9 horsepower pump machine weight 90kg. Operating time with its own function, the operation of light and flexible. According to the standard operation of the basic no fault, maintenance is very simple.

2. Light and small volume, can be installed into the chamber width 1.1m minivan (must be dismantled walking wheel), can also be such as to push a wheelchair like walking. Two people can easily be lifted to the convenience of the road over the ridge.

3 according to the standard operation, swing width 1200mm, speed to moderate control of lotus machine. Such as lotus field flatness is not more than 30 mm, the depth of not less than 200mm, lotus root growth of soft soil layer depth is not more than 350mm, next to the line does not leak to pure working 7 to 8 hours, about three acres of lotus Tanaka mud all thin slurry, no matter how high yield lotus will no escape of the intact wash surfaced.

Product main technical parameters and configuration, performance indicators

Project specifications

1 meters wide, 1.4 meters wide and 0.6 meters high

Structure quality 82kg

Structure of ship reciprocating type gun

Matching power 7.5 horsepower, 9 horsepower, 13 horsepower

Operating range 2.6m

Suitable water depth 0.3 - 1 m

Mining depth 30-60cm

Pure working hours of productivity 2000kg/8 hours

The coupling rate greater than 96%

Lotus root injury rate less than 3%

Broken rate is less than 4%
