Use range: suitable for plain, hilly, terraced fields, such as the size of the triangle plots and mud fields. With the harvest of rice, wheat, corn, beans, alfalfa and other crops.

Product overview

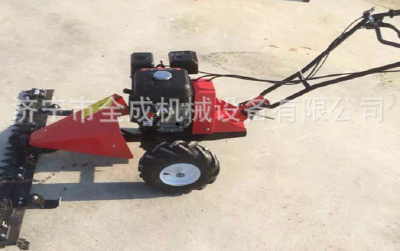

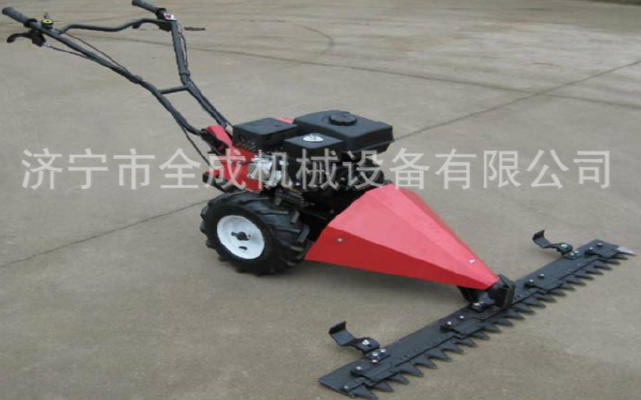

Walking reciprocating power central transmission T type double drive wheel mower, the machine is suitable for agricultural / pastoral areas of flat grassland and mountainous, hilly areas of grassland, mainly for mowing the lawn, the hay harvest, pastoral management, shrubs, finishing. The engine is four stroke air cooled gasoline engine, start by rebound type starter. Smooth transmission, no energy loss. Environmental design, in accordance with the emission standards.

Transmission output using special clutch to achieve walking continuously variable speed. Cutter is installed on the eccentric crank wheel direct drive on blade runner to motion, eccentric wheel through a belt transmission and chassis transmission case front power output belt connected, clutch adopts combined type tooth type clutch. Reciprocating cutting knife clutch control, throttle switch control, emergency shut-off switch control are in operation on the arm, hand can be adjusted in the vertical direction, cutting blades are made of special steel refining and wear-resisting performance is good, blade gap can through the knife pressure washer adjustment. The cutter orientation is accurate and smooth, to the road adhesion, adopts herringbone rubber tire. The transmission mechanism is equipped with a protective cover, which is safe to use. This machine has the advantages of wide application, stable operation, low power consumption, good cutting quality, no blocking knife, and so on.

Hand push type lawn mowing parameter:

1, mowing width: 800mm

2, mowing height: 10-80mm

3, 10-50mm: Grass Roots

4, the engine model: 170F

5, maximum power: 7.5HP/4000r/min

6, engine type: single cylinder, air-cooled, four stroke

7, engine displacement: 196CC

8, start mode: hand pull rope anti start

9, speed: forward 1.84-3.88km/h back 1.6km/h

10, transmission: cast iron worm gear transmission

11, net weight: 70KG

12, packing size: 1150*510*510mm
