the use of comb grass machine

Used for filling quartz sand and rubber particles into artificial turf and combing artificial grass filaments.

the main technical parameters

Parameters of electric comb:

1, sand filling amount: 1.2 - 1 tons

2, sand filled width: 1450 mm

3, mobile speed: 2.2 - 1.9 Km/h (according to the gear self)

4, power: 3 Kw

5, no load weight: 1.3 tons

6, external dimensions (length * width * height) 2030mm * 1960mm *:2800mm

7, hopper for steel welded structure, adjust the feed port angle can control the speed of sand.

8, in before and after the hopper are respectively provided with a group of brush, brush in marching machine can laterally reciprocating, suitable for various backward artificial turf construction, quartz sand evenly filling in the lawn.

9, two sets of brushes can be lifted to a certain height through the hydraulic cylinder, adjustable filling sand thickness. Brush to the highest position when the vehicle is suitable for high-speed operation and transportation.

10, using hydraulic drive brush reciprocating motion, stable and no vibration, and can adjust the brush reciprocating movement speed.

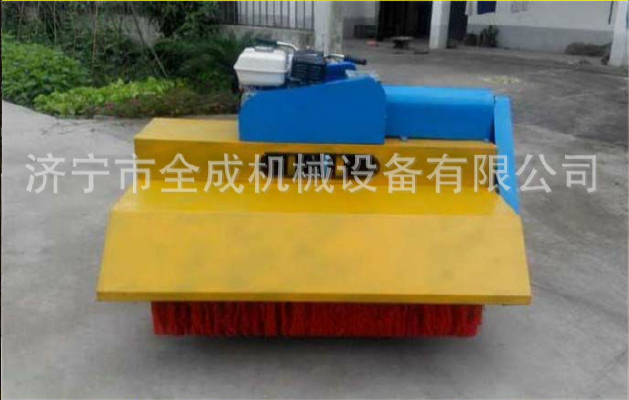

Gasoline brush machine parameters:

1, engine power: gasoline engine 5.5 horsepower, 6.5 horsepower, motor 3kw

2, theory of brush width: 1500mm

3, mobile speed: 2.2 - 1.9 Km/h (according to the gear self)

4, driven by the way: self

5, external dimensions (length * width * height) 1200mm * 1300mm *:1500mm
structure and function

1, the main transmission adopts aluminum alloy worm reducer, light weight, compact structure, good transmission effect.

2, the length of the cylindrical brush is composed of a plurality of assembling, convenient disassembly and replacement.

3, the front wheel support is provided with a lifting screw rod, to adjust the clearance of the brush.
